Wirelessly extend an Ultra-HD 4K HDMI display & multi-channel audio up to 98 feet (30 meters) away from the source using 60Ghz WiHD technology.

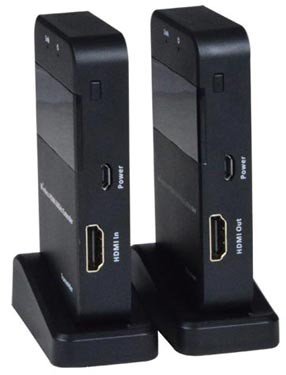

ST-WL4K-98 (Local and Remote Unit)
ST-WL4K-98 (Local and Remote Unit)

4K HDMI Wireless Extender

NTI Part #: ST-WL4K-98-Group
The XTENDEX® 4K HDMI Wireless Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 HDMI video and audio signals up to 98 feet over a 60GHz wireless network. Each video extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display.
  • Supports 4K, 2K, 1080p & 1920x1200 input/output resolutions.
  • Extend up to 98 feet over 60GHz Wireless Network
  • HDMI 1.4, WiHD 1.1
  • ROHS Compliant 4K HDMI Wireless Extender
  • CE Compliant 4K HDMI Wireless Extender
  • FCC Compliant 4K HDMI Wireless Extender
Scroll Down to Get Quote

Overview

The XTENDEX® 4K HDMI Wireless Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 HDMI video and audio signals up to 98 feet over a 60GHz wireless network. Each video extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display.

  • Uncompressed signal transmission over wireless network.
    • Frequency Band Range: 60GHz
    • Wireless Range: Up to 98 feet (30 meters), line-of-sight
      • Designed to transmit inside of a room.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz YUV 4:4:4, 2K resolution 2048x1080 @60Hz, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • HDMI features supported:
    • HDMI 1.4
    • Up to 36-bit Deep Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • LPCM, Dolby Digital, Dolby Digital+, Dolby TrueHD, and DTS-HD Master Audio
    • Support for CEC (consumer electronic control) compatible devices.
    • 3D
  • HDCP 2.2 and WiHD 1.1 compliant.
  • Connect up to 10 receivers to one transmitter.
    • Video is sent to one receiver at a time.
    • Use the front panel button on the transmitter to switch between receivers.
  • Connect up to 16 transmitters to one receiver.
    • Video is sent from one transmitter at a time.
    • Use the front panel button on the receiver to switch between transmitters.
  • Supports EDID pass-through with a filter that removes unsupported resolutions.
  • LED indicators provide signal status information.

Specifications

Local Unit
  • Compatible with a computer or UHD video source with HDMI output.
  • One female HDMI port for display connection.
  • One female USB Type Micro-B port for power connection.
  • Frequency Band Range: 60GHz
  • Latency: <1ms
Remote Unit
  • One female HDMI port for display connection.
  • One female USB Type Micro-B port for power connection.
  • Supports Ultra-HD 4Kx2K (3840x2160 @30Hz YUV 4:4:4), 2K resolution 2048x1080 @60Hz, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Power
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60 HZ via USB power adapters (included).
    • Output: 5VDC, 1A
    • Power consumption: 4.15W (max)
Max Distance
  • 98 feet (30 meters), line-of-sight.
    • Designed to transmit inside of a room.
Cables
  • Interface cables between the video source/displays and the splitter are required for proper operation.
  • Use HD-xx-MM cable to connect an HDMI source or display.
    • HD-3/6/10/15-MM supports resolutions to 4K@30Hz.
    • HD-25/30/50-MM supports resolutions to 1080p@60Hz.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
    • Supports resolutions to 4K@30Hz.
  • Use DVI-HD-xM-MM to connect a DVI source  or display up to 5 meters.
    • Supports resolutions to 2048x1080 @60Hz, 1080p@60Hz, and 1920x1200 @60Hz.
  • Use DP-HD-xx-MM to connect a DisplayPort source up to 15 feet.
    • Supports resolutions to 4K@30Hz.
  • Use USB3C-HD4K-xx-MM to connect a USB Type-C video source up to 10 feet.
    • Supports resolutions to 4K@30Hz.
  • Cables not included.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 3.54x2.2x0.67 in (90x56x17 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Package Includes
  • One transmitter unit
  • One receiver unit
  • Two USB power adapters (US).
  • Two USB Type A to Micro-USB Type B male to male cables
  • Two vertical stands

Application Drawings

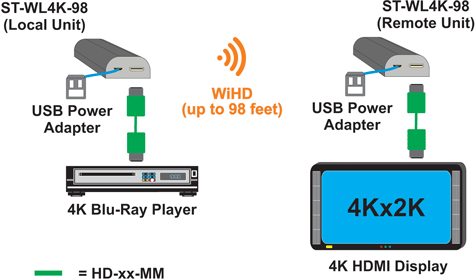

  • HDMI Wireless Extender to 98 Feet
    HDMI Wireless Extender to 98 Feet

Downloads

(0)HDMI Wireless Extender to 98 Feet

NTI Part # Description Qty
ST-WL4K-98 4K HDMI Wireless Extender
