Share one DVI-D/HDMI monitor among multiple video sources.

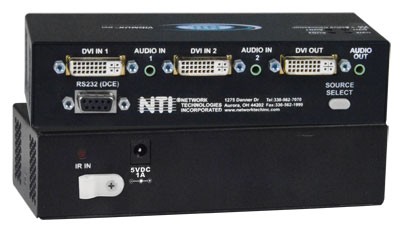

VIDMUX® SE-DVI-2ARS (Front & Back)
VIDMUX® SE-DVI-2ARS (Front & Back)

Additional Images/Videos

DVI/HDMI Video Switch with Audio & RS232

NTI Part #: SE-DVI-2ARS-Group
The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between two single link digital DVI/HDMI video sources.
Also known as: DVI Video switch, Digital DVI video only switcher, HDTV switch, DVI-D monitor switch, HDMI/DVI Video Switch, HDMI switch
  • CE Compliant DVI/HDMI Video Switch with Audio & RS232
  • FCC Compliant DVI/HDMI Video Switch with Audio & RS232
Scroll Down to Get Quote

Overview

The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between two single link digital DVI/HDMI video sources.

  • Supports DVI interface for crisp and clear video quality on flat panel display.
  • Supports HDTV resolutions up to 1080p, and up to 1920x1200 (WUXGA).
  • Eliminates redundant video displays.
  • Supports the DDC2B protocol.
  • 3.5 mm stereo audio input for each channel.
  • Passes HDMI audio signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Control via, infrared remote (IR) control or optional RS232.
  • IR remote control includes power on/off, mute function, and break-away audio (switch audio independent of video).
  • HDCP compliant.

Specifications

Audio/Video Input
  • Female DVI-I connectors.
  • 3.5 mm stereo audio jacks.
  • Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs.
Audio/Video Output
  • One Female DVI-I connector.
  • One 3.5 mm stereo audio jack.
  • Single link DVI-D signal.
  • Supports HDTV resolutions up to 1080p, and up to 1920x1200 (WUXGA).
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC Adapter.
  • Input voltage: 5VDC
Dimensions (WxDxH)
  • SE-DVI-2ARS: 6.46x2.77x1.55 in (164x70x39 mm).
Cables
  • Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).
  • Use HD-xx-MM HDMI cables with HDMIF-DVIDM adapters to connect an HDMI source or display up to 100 feet away from the switch.
Regulatory Approvals
  • CE, FCC
Warranty
  • Two years
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications
    • DVI-I Single Link Interface Cable (DVI-IS-xx-MM)
    • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM)

Control Methods

RS232 Control Option
  • Control
    • Female DB9 connector.
    • Add "RS" to the end of the part number to specify this option.
    • Baud rate 300 through 9600.
  • Commands
    • RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
    • CS – causes one INx/OUTx connection to occur.
    • RO – reads what output is connected to specified input.
    • RU – reads size of switch, reports number of inputs and number of outputs on specified switch.
IR Remote Control
  • Control can be done using the included IR remote control.
  • Independently switch video and audio signals.
  • Press any button in the Video or Audio section to switch the respective output to that input.
  • Press "Mute" button to disrupt the Audio Out signal (2-port models only).

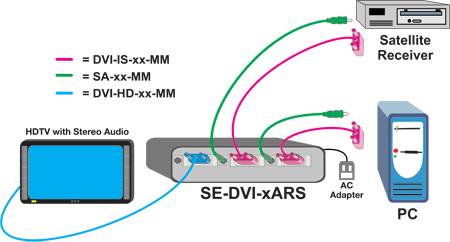

Application Drawings

  • DVI/HDMI Video Switch with Audio
    DVI/HDMI Video Switch with Audio
    How to share one DVI-D/HDMI monitor among multiple video sources.

  • "We received the SE-DVI-4ARS DVI Video Only switch with custom designed RMT-4-RS Remote Controller and had a chance to test it out. Once we corrected the serial cable pin-out, it works like a champ and will do exactly what we need. The front panel works for us without any changes. Thanks for all the hard work."

    Eric Khol
    SPAWARSYSCEN
    North Charleston, SC

(0)DVI Switch

NTI Part # Number of Ports Supported Features Qty
SE-DVI-2ARS 2 DVI + Audio + RS232

Collapse all Expand all Related Items :

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Qty
DVI-HD-1M-MM 1 meter
DVI-HD-2M-MM 2 meters
DVI-HD-3M-MM 3 meters
DVI-HD-5M-MM 5 meters

(0)DVI-I Cables, Male to Male

NTI Part # Length Qty
DVI-IS-6-MM 6 feet
DVI-IS-10-MM 10 feet
DVI-IS-15-MM 15 feet

(0)HDMI Male-Male Cables

NTI Part # Length Qty
HD-3-MM 3 feet
HD-6-MM 6 feet
HD-10-MM 10 feet
HD-15-MM 15 feet
HD-25-MM 25 feet
HD-30-MM 30 feet
HD-50-MM 50 feet

(0)HDMI Female to DVI-D Male Adapter

NTI Part # Qty
HDMIF-DVIDM

(0)Stereo Audio Cables - Male to Male

NTI Part # Length Qty
SA-3-MM 3 feet
SA-6-MM 6 feet
SA-10-MM 10 feet
SA-15-MM 15 feet
SA-25-MM 25 feet
SA-35-MM 35 feet
SA-50-MM 50 feet
SA-100-MM 100 feet
