VGA USB KVM matrix switch, 4 user & 16 computer, OSD/RS232 control, rackmounted
VGA USB KVM matrix switch, 4 user & 16 computer, OSD/RS232 control, rackmounted

VGA USB KVM matrix switch, 4 user & 16 computer, OSD/RS232 control, rackmounted

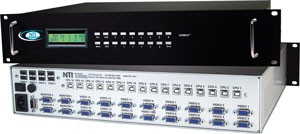

NTI Part #: UNIMUX-4X16-U
4 users control 16 USB computers. Rackmounted OSD. MAC, PC and SUN supported. 1920x1200 video resolution with no degradation. MAC Power On from keyboard. Compatible with wheel mice. No lock ups, even when typing fast.

Overview

4 users control 16 USB computers
  • Rackmounted OSD
  • MAC, PC and SUN supported
  • 1920x1200 video resolution with no degradation
  • MAC Power On from keyboard
  • Compatible with wheel mice
  • No lock ups, even when typing fast

Specifications

4x16

Hosts
  • Sixteen female 15-pin HD and sixteen female USB Type B connectors.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
  • Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
  • Supports MAC G4, G5 and Xserve.
  • Supports MAC soft (keyboard) power-on.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
  • Crisp and clear 1920x1200 resolution.
  • Four Female 15-pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Cables
  • Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
  • Cables not included.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Devices
  • Four sets of female USB Type A connectors for keyboards and mice.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
  • Keyboard and mouse are hot-pluggable.
  • USB MAC and SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
Power
MTBF
  • 50,289 hrs
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
