VGA Monitor Extension Cable

NTI Part #: VEXT-3-Group
VGA Monitor Extension Cable
VGA Monitor Extension Cable
NTI Part #: VEXT-3-Group
Extend a VGA monitor up to 100 feet with no ghosting or degradation. Gold plated contacts.
Also known as: VGA cable, Video cable, Video cable extension
Scroll Down to Get Quote

Overview

  • No ghosting and no degradation - guaranteed
  • Gold plated contacts

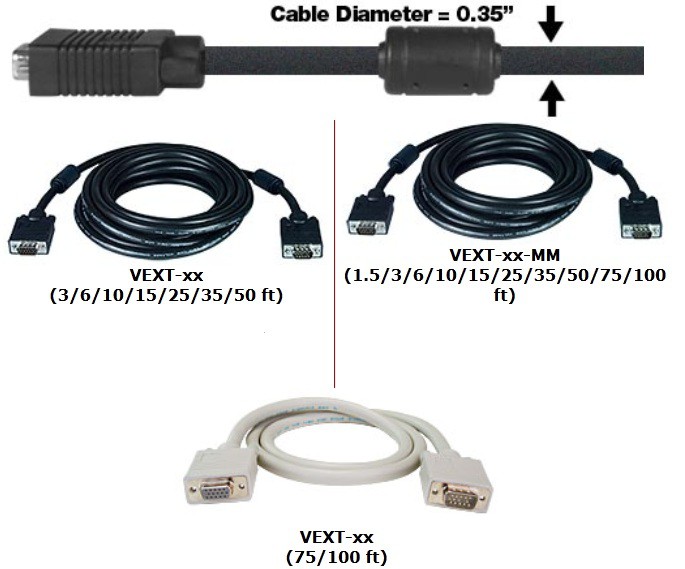

  • Diameter: 0.35"
  • Three 75 ohm mini coaxial cables
  • Supports 1920x1200 (WUXGA) video resolution up to 50 feet
  • Supports 1600x1200 (UXGA) video resolution up to 100 feet
  • The shield consists of mylar foil, braided shield and drain wire
    • Drain wire and braid connected to connector shell
  • Male 15HD to female 15HD extension VEXT-xx
  • Male 15HD to male 15HD interface VEXT-xx-MM
  • Available lengths: 1.5(male-male only)/3/6/10/15/25/35/50/75/100 feet
    • VEXT-xx-MM: Black cable with two molded-in ferrite cores
    • VEXT-3, VEXT-6, VEXT-10, VEXT-15, VEXT-25, VEXT-35, VEXT-50: Black cable with two molded-in ferrite cores
    • VEXT-75, VEXT-100: White cable no ferrites
  • RoHS compliant

  • "We work in a competitive and demanding business environment where having the right parts is crucial to getting the job done. We can count on NTI for helpful information and the correct parts shipped on time."

    Patrick Orwig
    S.M.I.L.E., Inc.
    Bedford Heights, OH

(0)VGA Video Cables, Male to Female

NTI Part # Length Color Description Qty
VEXT-6 6 feet Black 2 Molded in Ferrite Cores
VEXT-100 100 feet White No Ferrite

(0)VGA Video Cables, Male to Male

NTI Part # Length Color Description Qty
VEXT-1-5-MM 1.5 feet Black No Ferrite
VEXT-3-MM 3 feet Black 2 Molded in Ferrite Cores
VEXT-6-MM 6 feet Black 2 Molded in Ferrite Cores
VEXT-10-MM 10 feet Black 2 Molded in Ferrite Cores
VEXT-15-MM 15 feet Black 2 Molded in Ferrite Cores
VEXT-25-MM 25 feet Black 2 Molded in Ferrite Cores
