Extend USB keyboard, USB mouse and HDMI monitor up to 300 feet
ST-C6USBHU-300 (Remote and Local Unit)
ST-C6USBHU-300 (Remote and Local Unit)

HDMI USB KVM Extender via One CAT5/6/7

NTI Part #: ST-C6USBHU-300-Group
The XTENDEX® HDMI USB KVM Extender provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 300 feet over CAT5/6/7 cable.
Also known as: HDMI USB KVM extender single CAT5, remote HDMI USB Touch screen monitor, extend keyboard monitor mouse, high definition 1080p extender, HDTV video USB keyboard mouse balun
  • USB connector for USB touch screen monitor, CAC card reader, or interactive whiteboard
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant HDMI USB KVM Extender via One CAT5/6/7
  • HDMI USB KVM Extender via One CAT5/6/7Digital Signage Product
  • CE Compliant HDMI USB KVM Extender via One CAT5/6/7
Scroll Down to Get Quote

Description

The XTENDEX® HDMI USB KVM Extender provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 300 feet over CAT5/6/7 cable. Each ST-C6USBH-300 consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/6/7 cable.

  • Transmits all signals over one CAT5/6/7 cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • HDMI features supported:
    • 12-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 225 MHz (6.75 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Available with additional USB 2.0 (low/full speed) port.
    • For the additional USB port on the remote unit, use to connect a USB touch screen monitor, interactive whiteboard, or CAC card reader.
  • High quality, rugged steel construction with durable powder coat finish.
  • Keyboard and mouse are hot-pluggable.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Only one power supply is necessary to power both the local and remote units.

Specifications

Local Unit
  • Supports a USB computer (PC, SUN, MAC) with HDMI video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female HDMI connector.
  • One female USB Type B connector.
  • One female RJ45 port for sending/receiving high definition video/audio, USB, CEC, and DDC signals.
Remote Unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Supports embedded digital audio.
  • Auto equalization for different lengths of CAT5e/6/7 cable.
  • One female HDMI connector.
  • Two female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including Logitech M570 wireless mouse and Logitech K400 wireless keyboard.
  • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device – USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
    • USB maximum data rate: 12 Mbps.
    • Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Lenovo L12341 and HP Compaq.
    • Supported interactive whiteboards: SMART Board™ SB640
    • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
  • One female RJ45 port for sending/receiving high definition video/audio, USB, CEC, and DDC signals.
Dimensions
  • WxDxH(in): 3.09x3.49x1.08
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Cables
  • 3-foot HDMI male-to-male cable included.
  • 1-meter male USB Type A to male USB Type B cable included.
  • Use HD-xx-MM cable to connect an HDMI display.
  • Use DVI-HD-xx-MM cable to connect a DVI source or display.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
  • EN51055, EN50121-3-2
Warranty
  • Two years
Distances & Computer Resolutions for
CAT5e/CAT6/CAT7 Cables
Cable Distance (ft) Max Std Resolution
CAT5e
Solid UTP
100 1920x1200 at 60Hz
75 1600x1200 at 60Hz
150 1280x1024 at 60Hz
275 1024x768 at 60Hz
CAT5e
Stranded UTP
100 1920x1200 at 60Hz
75 1600x1200 at 60Hz
CAT5e
Stranded
Shielded
100 1920x1200 at 60Hz
50 1600x1200 at 60Hz
150 1280x1024 at 60Hz
200 1024x768 at 60Hz
CAT6 Solid
UTP
(24 AWG)
100 1920x1200 at 60Hz
75 1600x1200 at 60Hz
CAT6 Solid
UTP
(23 AWG)
140 1920x1200 at 60Hz
100 1600x1200 at 60Hz
200 1280x1024 at 60Hz
275 1024x768 at 60Hz
CAT6
Solid FTP
100 1920x1200 at 60Hz
75 1600x1200 at 60Hz
CAT6
Solid
Shielded
100 1920x1200 at 60Hz
75 1600x1200 at 60Hz
200 1280x1024 at 60Hz
225 1024x768 at 60Hz
CAT6a
Solid
150 1920x1200 at 60Hz
110 1600x1200 at 60Hz
250 1280x1024 at 60Hz
325 1024x768 at 60Hz
CAT7
Solid
175 1920x1200 at 60Hz
110 1600x1200 at 60Hz
225 1280x1024 at 60Hz
350 1024x768 at 60Hz
Distances & HDTV Resolutions for
CAT5e/CAT6/CAT7 Cables
Cable Distance (ft) Max HD Resolution
CAT5e
Solid UTP
50 1080p/60Hz/24-bit
100 1080p/24Hz/24-bit
1080i/60Hz/36-bit
150 720p/60Hz/24-bit
200 480p/60Hz/24-bit
CAT5e
Stranded UTP
50 1080p/60Hz/24-bit
100 1080p/24Hz/24-bit
1080i/60Hz/36-bit
CAT5e
Solid
Shielded
50 1080p/60Hz/24-bit
100 1080p/24Hz/24-bit
1080i/60Hz/36-bit
CAT5e
Stranded
Shielded
50 1080p/60Hz/24-bit
100 1080p/24Hz/24-bit
1080i/60Hz/36-bit
150 720p/60Hz/24-bit
200 480p/60Hz/24-bit
CAT6 Solid
UTP
(24 AWG)
100 1080p/60Hz/24-bit
CAT6 Solid
UTP
(23 AWG)
75 1080p/60Hz/36-bit
100 1080p/60Hz/24-bit
150 1080p/24Hz/24-bit
200 1080i/60Hz/36-bit
720p/60Hz/24-bit
350 480p/60Hz/24-bit
CAT6
Solid FTP
100 1080p/60Hz/24-bit
CAT6
Solid
Shielded
100 1080p/60Hz/24-bit
200 720p/60Hz/24-bit
300 480p/60Hz/24-bit
CAT6a
Solid
100 1080p/60Hz/36-bit
125 1080p/60Hz/24-bit
225 1080p/24Hz/24-bit
1080i/60Hz/36-bit
300 720p/60Hz/24-bit
400 480p/60Hz/24-bit
CAT7
Solid
100 1080p/60Hz/36-bit
125 1080p/60Hz/24-bit
250 1080p/24Hz/24-bit
1080i/60Hz/36-bit
300 720p/60Hz/24-bit
400 480p/60Hz/24-bit

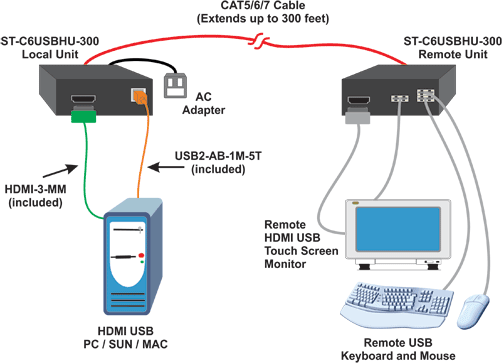

Application Drawings

  • ST-C6USBHU-300
    ST-C6USBHU-300
    How to extend remote KVM access to a USB computer up to 300 feet over CAT5/6/7 cable.
