Rackmount Terminal Drawer with SSH Secure Console Switch

NTI Part #: RACKMUX-T15-N-S4-Group

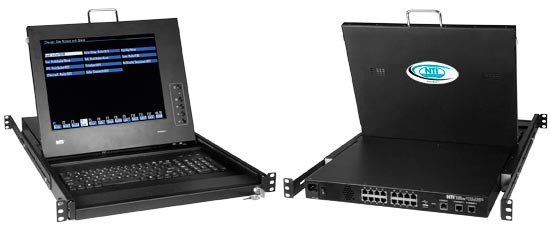

RACKMUX-T15-N-S16 (Front & Back)
RACKMUX-T15-N-S16 (Front & Back)
NTI Part #: RACKMUX-T15-N-S4-Group
The RACKMUX® Terminal Drawer with Secure SSH Console Switch combines a Terminal Drawer and an integrated SSH Console Switch delivering secure management of up to 32 serial devices via the Internet, TCP/IP network, or dial-up modem connections in only 1RU of space.
Also known as: rackmount console terminal, RS232 terminal, TELNET integrated rackmount console terminal and SSH serial console switch, terminal LCD monitor keyboard drawer with built-in secure console switch, telnet terminal emulation, rack mount console drawer
Product Highlight
  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote

Overview

The RACKMUX® Terminal Drawer with Secure SSH Console Switch combines a Terminal Drawer and an integrated SSH Console Switch delivering secure management of up to 32 serial devices via the Internet, TCP/IP network, or dial-up modem connections in only 1RU of space.
  • Available with built-in 4, 8, 16, 24, or 32-port Secure SSH Console Switch
  • Forward-folding 15" (381 mm) LCD with 800x600 resolution.
  • Torque-friction hinges—monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest and 17-key numeric keypad.
  • High quality, rugged steel construction with durable powder coat finish.
  • Front panel security lock.
  • Emulates many terminal types.
  • Select from 16 foreground and 16 background colors.
  • Available with optional mounting bracket for two-post style telco rack.

Specifications

Compatibility
  • Compatible with any SUN, HP or PC-based headless server.
  • Supports most devices with an RS232 serial port such as routers, bridges, firewalls, and hubs.
Keyboard
  • Keyboard available in: English(US).
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Dimensions
  • WxDxH: 19x21.9x1.75 Inches. (483x556x44 millimeters)
  • Weight: 26 lbs. (12 kg)
  • Drawer is adjustable to various rack depths from 22" (559 mm) deep to 39" (991 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

Keyboard Layouts

  • Rackmount KVM Drawer with Numeric Keypad
    Rackmount KVM Drawer with Numeric Keypad
    RACKMUX-T15-N, RACKMUX-T15-NG, RACKMUX-T15-N-CSx, RACKMUX-T15-NG-CSx, RACKMUX-T15-N-Sx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V15-N-xUNV, RACKMUX-V17-N-xUNV, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-nXmUHD, RACKMUX-V17-N-nXmUHD, RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-D17-N, RACKMUX-D15/17-N-xDVIHD

(0)Rackmount Terminal Drawer with SSH Secure Console Switch

NTI Part # Description Qty
RACKMUX-T15-N-S4 Terminal drawer with 4-port SSH console serial switch

Collapse all Expand all Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part # Description Qty
RL-T15-TEL Mounting Bracket for Two-Post Style Telco Rack

(0)Adapters

NTI Part # Description Qty
DB25M-RJ45F-C Adapt a modem to the SERIMUX
DB9F-RJ45F Adapt DB-9M serial ports to the SERIMUX
DB25M-RJ45F-T Adapt DB-25F serial ports to the SERIMUX
DB25F-RJ45F Adapt DB-25M serial ports to the SERIMUX
