Simulates the presence of an attached display to a video source
DP-EDID-EMLTR-HL
DP-EDID-EMLTR-HL

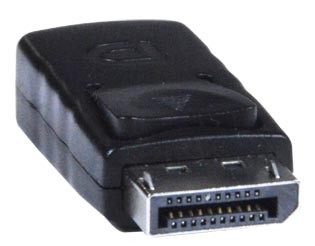

Headless DisplayPort EDID Emulator

NTI Part #: DP-EDID-EMLTR-HL-Group

The Headless DisplayPort EDID Emulator simulates the presence of an attached display to a video source. The built-in EDID table stores and reproduces resolutions up to 3840x2160 @17Hz and 1080p at 60Hz.


Does not support video pass-through operation.

Scroll Down to Get Quote

The Headless DisplayPort EDID Emulator simulates the presence of an attached display to a video source. The built-in EDID table stores and reproduces resolutions up to 3840x2160 @17Hz and 1080p at 60Hz.

  • Emulates a DisplayPort display (sink device) by providing Hot Plug Detect and EDID to the DisplayPort source device from the emulator's internal memory.
  • Supports headless operation – no monitor connection required.
    • Does not support video pass-through operation.
  • Supports Ultra-HD 4Kx2K resolutions (3840x2160 @17Hz), HDTV resolutions to 1080p @60Hz, and up to 1920x1200 @60Hz (WUXGA).
  • Pre-programmed with many standard resolutions with native set to 1080p.
    • A monitor must be connected to the same source as the emulator to select resolution.
    • The selectable resolutions are dependent on the computer's graphic card.
  • Supports Plug-n-Play specification.
  • Compact design for easy installation and operation.
  • No power supply – powered by source.
  • Ideal for remote desktop access to a headless computer.
Connector
  • One male DisplayPort port for source connection.
  • Supported video input resolutions:
    • Ultra-HD 4Kx2K resolutions (3840x2160 @17Hz)
    • HDTV resolutions to 1080p.
    • Up to 1920x1200 @60Hz (WUXGA).
    • The selectable resolutions are dependent on the computer's graphic card.
    • Default resolution: 1080p.
Dimensions
  • WxDxH: 0.78x1.87x0.47 in (20x47x12 mm)
Power
  • Powered by source.
Environmental
  • Operating temperature: 23 to 122°F (-5 to 50°C).
Warranty
  • Two years.

(0)Headless DisplayPort EDID Emulator

NTI Part # Description Qty
DP-EDID-EMLTR-HL Headless DisplayPort EDID Emulator
