Application Drawings
-
How to Configure Point-to-Point Connections
-
How to Configure Point-to-Many Connections Using an Unmanaged Network SwitchFor a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
-
How to Configure Many-to-Many Connections Using a Managed Network SwitchSupport for multiple transmitters requires a Managed network switch with VLAN/IGMP support.
Application Notes
-
How to Set-up a Matrix Switch Configuration Using Multiple Transmitters and Receivers and a Managed Network Switch.A managed network switch with VLAN/IGMP support is required to set-up a matrix switch configuration using multiple transmitters and receivers. Each VLAN configuration acts as a separate HDMI Over IP channel on the network. Display receivers attached to a port on the managed network switch can be connected to any chosen VLAN to display that particular HDMI channel. Configuration settings can be controlled via a managed switch's own web interface (where applicable), with IP commands, or the switch's RS232 control port. Control software on a PC or other other home automation controller hardware, such as Control4 or Creston, can be used to simplify the process of commanding the managed network switch.
(0)HDMI Male-Male Cables
NTI Part # | Length | Qty |
---|---|---|
HD-3-MM | 3 feet | |
HD-6-MM | 6 feet | |
HD-10-MM | 10 feet | |
HD-15-MM | 15 feet | |
HD-20-MM | 20 feet | |
HD-30-MM | 30 feet | |
HD-75-MM | 75 feet |
Collapse all Expand all Related Items :
(0)DVI-D Male to HDMI-A Male Single Link Cable
NTI Part # | Length | Qty |
---|---|---|
DVI-HD-1M-MM | 1 meter | |
DVI-HD-2M-MM | 2 meters | |
DVI-HD-3M-MM | 3 meters | |
DVI-HD-5M-MM | 5 meters |
(0)Other
NTI Part # | Qty |
---|---|
ST-IPHDMI-L-2GPOE | |

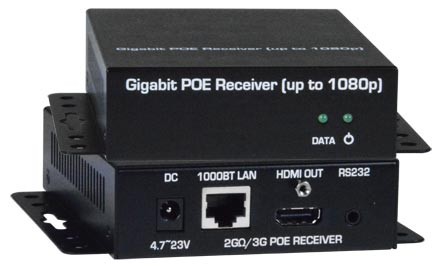

ST-IPHDMI-R-2GPOE | |
PWR-SPLY-IPHD2GO |
