Display the video from one 4Kx2K UHD HDMI video source across four 1080p HDMI monitors. Cascade processors to create large video walls up to 64x64 or 1x4096.

2x2 HDMI Video Wall Processor – 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs

NTI Part #: SPLITMUX-VWC-4HD4KI-Group

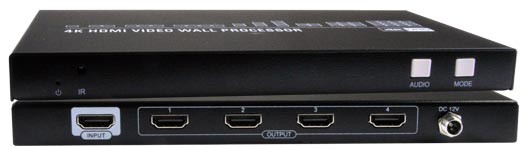

The SPLITMUX® HDM Video Wall Processor displays video from one 4Kx2K 60 Hz HDMI video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall. Additionally, it can be used as a video splitter.
Also known as: 2x2 video wall processor, HDMI video wall controller, digital signage monitor walls, one 4Kx2K video source played on four 1080p displays, 4 displays tiled together form one large screen
  • 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs
  • Cascade units to create video walls up to 64x64 or 1x4096
  • Use as a video splitter
  • ROHS Compliant 2x2 HDMI Video Wall Processor – 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs
  • CE Compliant 2x2 HDMI Video Wall Processor – 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs
  • FCC Compliant 2x2 HDMI Video Wall Processor – 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs
Scroll Down to Get Quote

Overview

The SPLITMUX® HDM Video Wall Processor displays video from one 4Kx2K 60 Hz HDMI video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall. Additionally, it can be used as a video splitter.

  • Supports video wall configurations with displays in landscape orientation – 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
    • In 2x2 Rotation Mode, the top two images will be rotated 180 degrees.
    • In 1x1 Mode, use as a video splitter – all monitors simultaneously display the same image.
  • Supported resolutions:
    • Input: Ultra-HD 4Kx2K resolutions to 3840x2160 (60Hz) and HDTV resolutions to 1080p.
    • Output: 1920x1080 (fixed for each port).
  • Cascade processors up to six levels to create large video walls up to 64x64 or 1x4096.
  • HDMI features supported:
    • HDMI 2.0
    • Up to 36-bit Deep Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:0
    • LPCM 2/5.1/7.1, Dolby, DTS
    • YUV 4:4:4 and 4:2:0
  • HDCP 2.2 and 1.4 compliant.
  • Fluid, real-time video performance with 60 frames per second (fps).
  • Each monitor simultaneously plays the audio.
  • Quick and easy plug-and-play installation – no drivers or software.
  • Control the video wall controller through front panel buttons or IR remote (included).
  • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.

Specifications

Inputs
  • One female HDMI connector.
  • Compatible with a computer or Ultra-HD video source with HDMI video.
  • Supported video input resolutions:
    • Ultra-HD 4Kx2K resolutions up to 3840x2160 (60Hz)
    • HDTV resolutions to 1080p
  • Supports HDCP 2.2 and 1.4
Outputs
  • Four female HDMI connectors.
  • Supported video output resolutions: HDTV 1080p (1920x1080 @ 60Hz)
    • Fixed for each port.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Supports HDCP 2.2 and 1.4
Power
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (AC adapter included.)
  • Output: 12 VDC, 2A
Dimensions
  • WxDxH (in): 8.27x4.33x0.71 (210x110x18 mm)
Cables
  • Interface cables between the video source/displays and the video wall processor are required for proper operation.
  • Use HD-xx-MM cable to connect an HDMI source or displays.
    • Supports 3840x2160@60Hz input to 20 feet.
    • Supports 1080p@60Hz input/outputs to 50 feet.
  • Use DP-xx-MM cable to connect a DisplayPort source.
  • Use DVI-HD-xx-MM cable to connect a DVI source or displays.
  • Use USB3C-HD4K-xx-MM cable to connect a USB 3.0 Type C source with DP Alt Mode or Thunderbolt 3 (computer, tablet, or smartphone).
  • Cables not included.
Environmental
  • Operating temperature: 23 to 131°F (-5 to 55°C).
  • Storage temperature: -13 to 158°F (-25 to 70°C).
  • Operating/storage relative humidity: 10 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters, and cables for complex applications.
